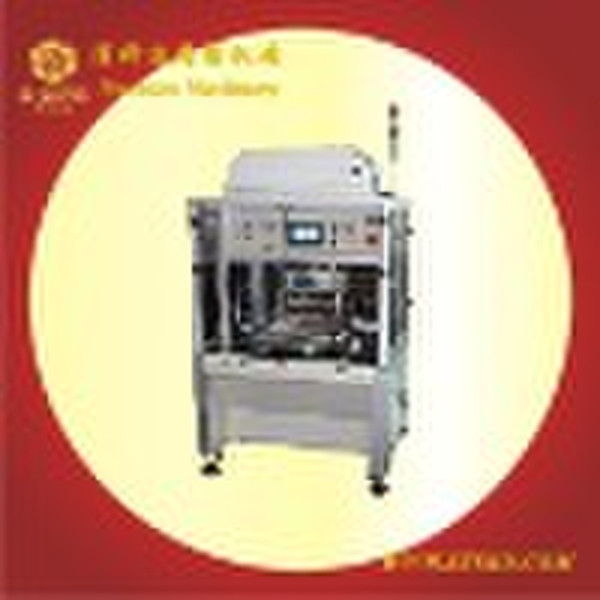

LCD Laminating machine

1. Control method: PLC contoller for extending the further function following the customer requirment 2. interface : touch panel interface, for the operation directly and convenient operation 3. fixture: high -tough material for the fixture, stable using and long life. 4. working method: vacuum absorbing in the vacuum chamber, which almost absolutly vacuum in the vacuum chamber 5: vacuum pump: imported from Germany. 6: working method choosing: two type working method could be chosen, directly lamination and lamination by vacuum absorbing. 7: application: used in different size mobile phone glass lamination, Parameter: PowerAC220V 50Hz±10%Temperature rangeAmbient temp. 100 °C( each setting 1 °C)Temperature differential precision±2°CVacuum990KpaPressure range35Kgf 400KgfLaminated time30sMemory group25groupsProduct size25*25 350mm*300mmTouch panelWENVIEW 5.7" colorful TPThermocoupleK TYPEDimension(L)800mmx(W)800x(H)1518mmWeight268KG
