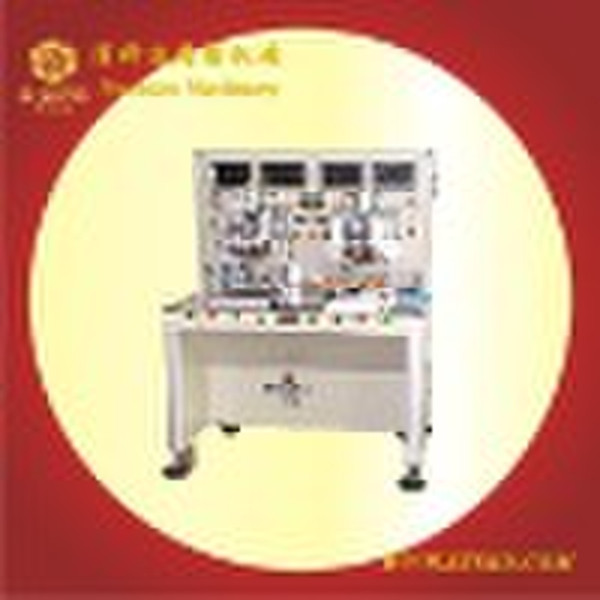

Double Head FOG Bonding machine

Key Feature: Double cylinders ofSKING pressure system can eliminate self-gravity of bond head. Minimum pressure accuracy is 0.1kg. Four sets C/L high clearance vision system make the alignment correctly and intuitively. SUNSOM bond head structure adopt two precise slide rail position, linear bearing assit position, and accuracy is ±5um. Build-in vacuum and auto rolling device. Japanese temperature controlling system, operating system and 7" human-machine interface. Basic Parameter Voltage: AC220V 50-60HZ Operation Mode: 7" interface Rating Power: 1.5KW Work Mode: Double sectionbonding area Pressure: 0.4-0.8Mpa Fixture: Micrometer adjust X-Y-θaxis Bond Head: 60mm(customization) Thermocouple: K type Rolling Mode: Auto Program Control: PLC controller Vision System: Four C/C CCD Weight: 280KG Heat Mode: Constant heat Dimension: L730 x W530 x H1265mm Front View and Side View Machine parameter and specification made to customer request
